The Original Engine Swap

The Honda transplant that started it all.

By Matt “Rodrez” Rodriguez
Photos by Aaron Bonk and courtesy of American Honda

If there’s a constant among Honda enthusiasts, it’s that we can’t leave well enough alone. No matter what’s underneath our projects’ hoods, the idea of replacing the stock powerplant is typically one of the first thoughts that pops into our heads. It’s no secret that the K-series tidal wave that’s crashing over the country took the place of B- and H-series swaps, but before VTEC engine transplants became as routine as oil changes, there was a little engine we like to call the ZC that’s since lived out its 15 minutes of fame.

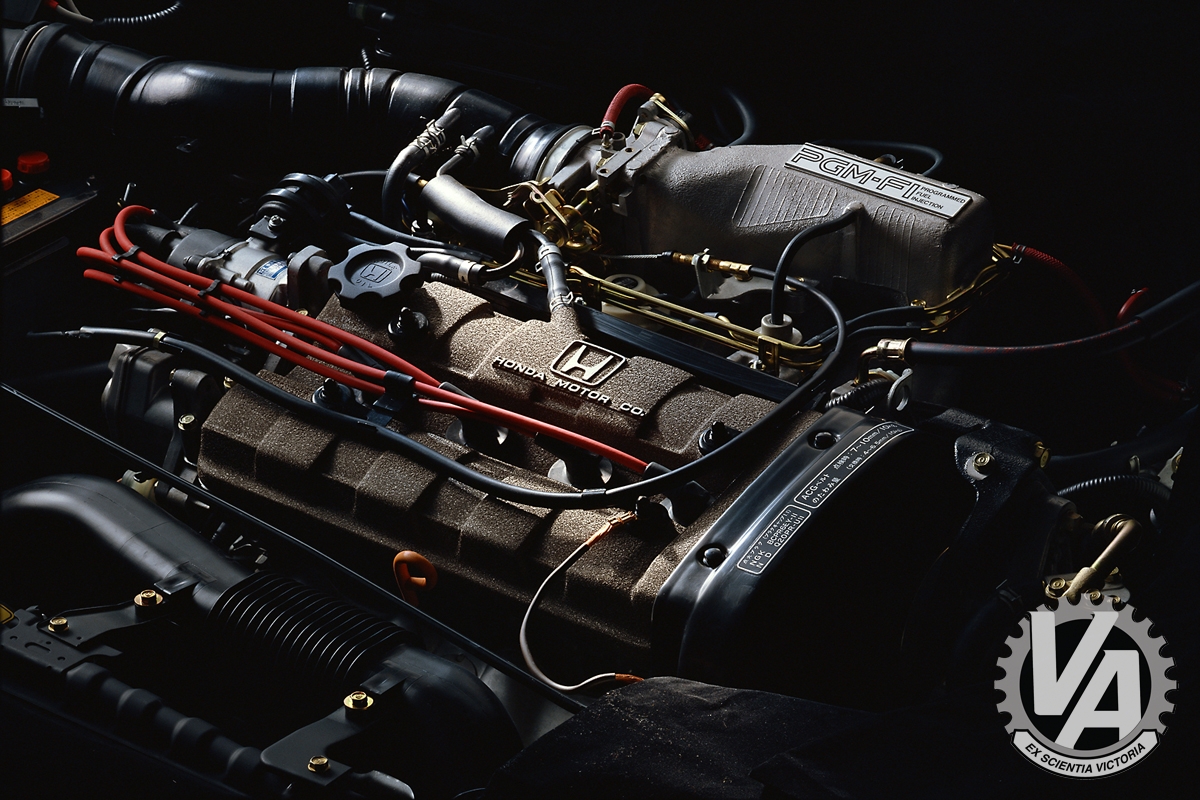

Honda's Japanese-only ZC engine was American engine swappers' first glimpse of a four-cylinder, twin-cam engine they could actually make use of.

It’s often said that the U.S. bears the short end of the stick Honda-wise. We’ve received few Type Rs, almost all of our VTEC engines are slightly less powerful than Japan’s, and cars like the Civic have only been outfitted with factory-equipped twin-cam muscle since 1999. Arguably, the contempt began when the ’84 Civic was introduced in the U.S. Those in the know soon realized that overseas Civics and CRXs were zipping around with dual-cam ZC powerplants right from the factory. Long before the B-series revolution, the little ZC proved to be the catalyst for a two-decade-long engine swap revolution.

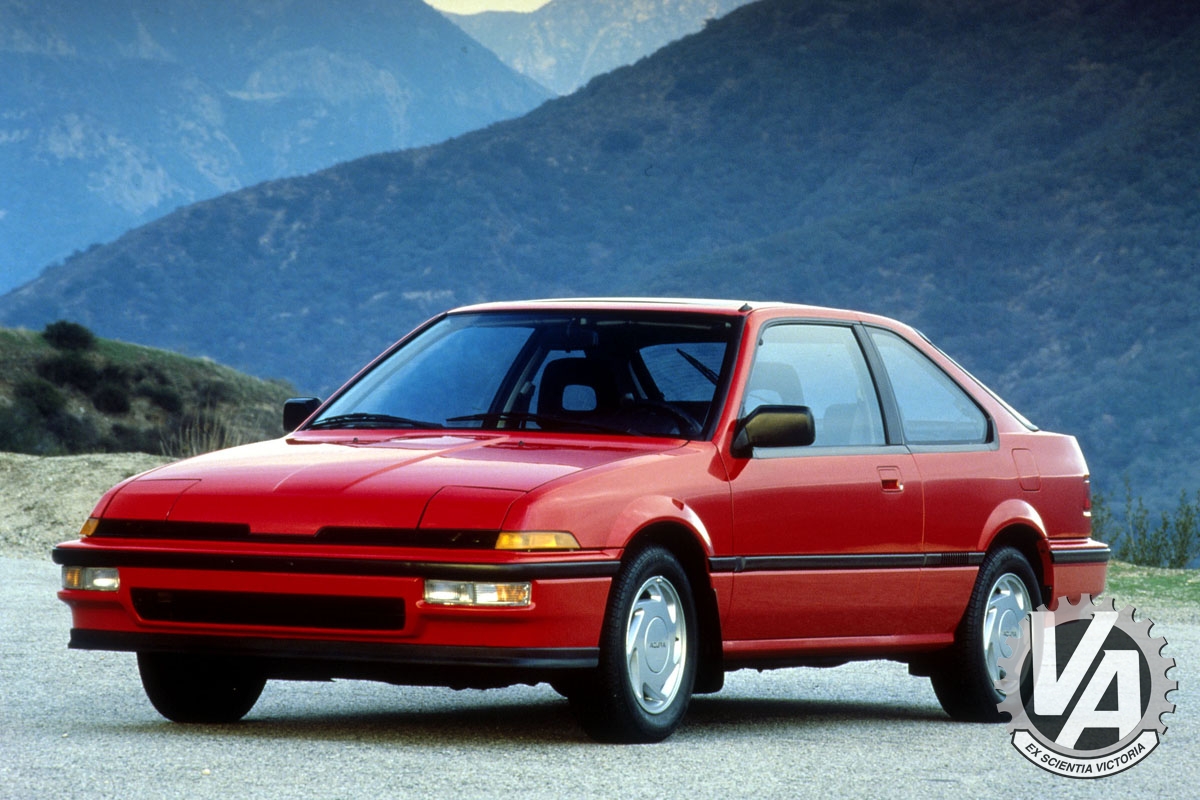

Although the first-generation Integra's twin-cam D-series may appear similar to the ZC, it isn't really. Its primary difference is its mounting points, which keeps it from directly bolting into any North American-bound Civic.

Wanting to be a part of the two-cam club, the die-hard began swapping their factory engines for their imported JDM brethren. Finding that the ZC engine would fit with very little effort, garage mechanics flooded California’s engine importers in search of donors. Perhaps the most appealing aspect of the ZC swap was its innate compatibility with most of the receiving vehicle’s previous engine upgrades, as most of the bolt patterns and sizing between the D-series and the ZC matched. The JDM ZC offered a horsepower bump that put pioneer engine swappers right in that 130hp-zone, with torque measuring in at more than 105 lb-ft. Of course, all of this could be bettered with simple bolt-ons or even that turbo kit leftover from the D-series. In terms of parts transferring, the exhaust manifold proved to be the only problem. With a 3mm difference between the SOHC and ZC exhaust port openings, a little massaging for maximum flow was in order when using the D-series header, which was almost always necessary since few junkyards sold engines with such components. Unlike B- and H- series swaps, though, even the Civic’s existing engine mounts, brackets, and shift linkages bolted right up, as did most any Civic transmission of its day.

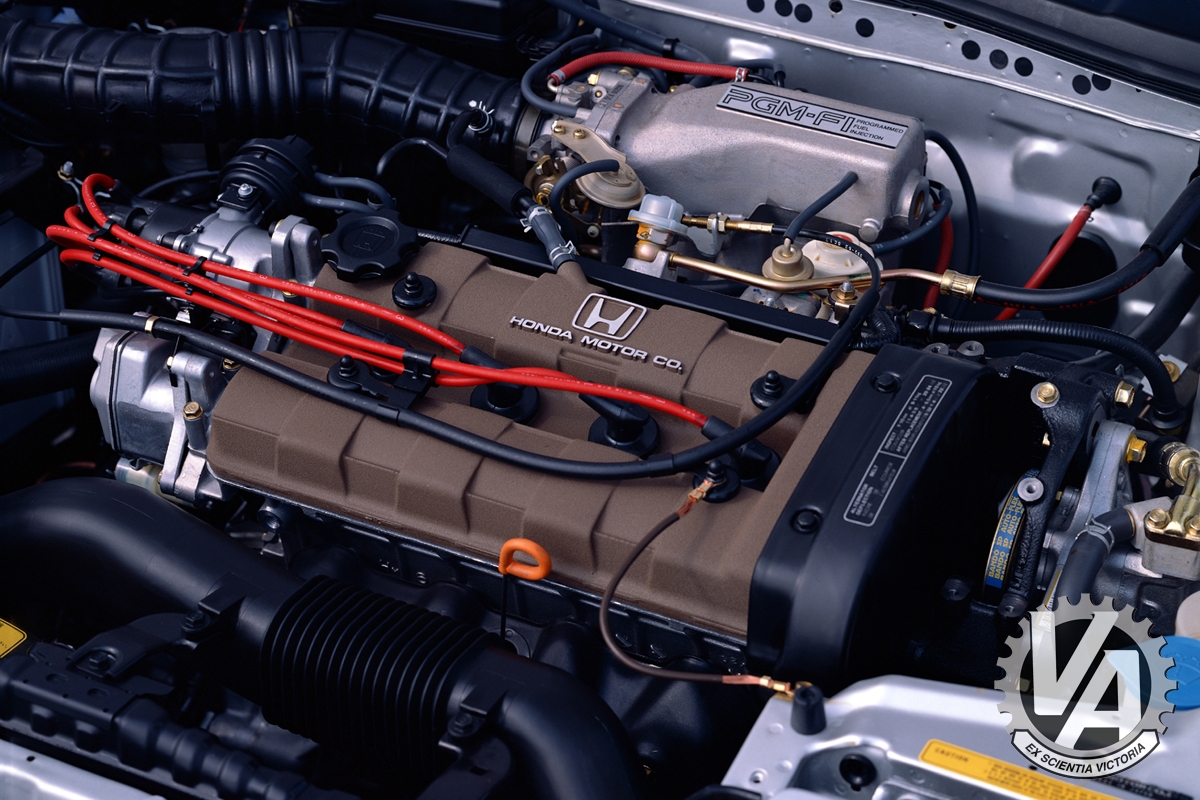

Aftermarket support for the ZC has always been minimal, but even in stock form the 130 hp and 105 lb-ft of torque that the 1.6L engine supplied was worth it. At least in the early 1990s.

But living with Honda’s first mass-accepted twin-cam engine wasn’t entirely perfect. Basic maintenance and timing belt installations proved especially tricky when considering the ZC; not only were the belts difficult for Americans to get, even when properly installed the ZC’s cam timing appeared off by a tooth even by the most experienced of mechanics. Keep in mind that internet message boards weren’t around yet so most would make what seemed like endless visits to their local parts suppliers in search of the proper solution: a late-’80s Prelude timing belt. Enthusiasts couldn’t just walk into their local Acura dealership and ask for ZC parts; technically, the engine didn’t exist here and, although similar, they’re different than U.S.-spec ’86-’89 Integra engines. Fortunately, basic components like distributors, spark plug wires, and water pumps shared part numbers with the Integra of its day.

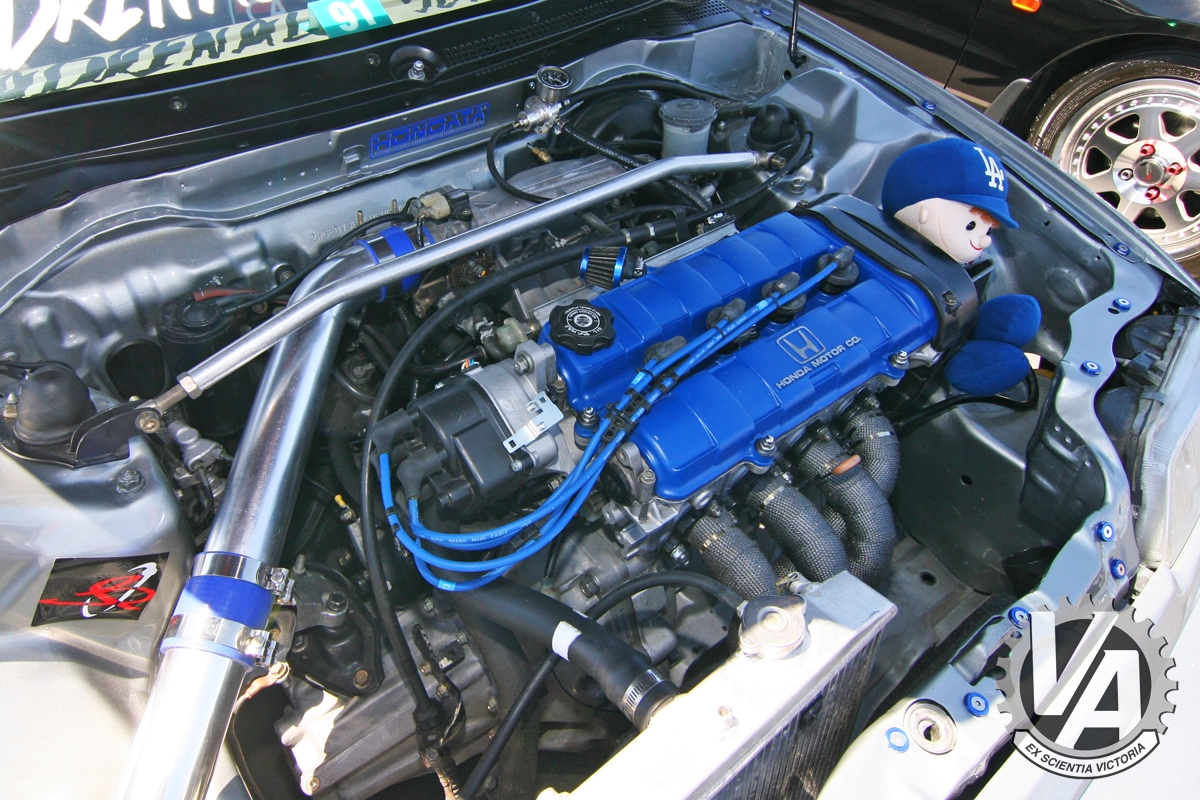

Look hard enough and you'll still find ZC engine swaps roaming about today.

Yes, the ZC is dated but the swap marks a point of progression for homegrown engine swaps. It was short-lived but shouldn’t be forgotten. As builders familiarized themselves with B- and H-series engines, the ZC fell off the map of potential swaps. Although Honda did later produce a Civic Ferio that was powered by a similar DOHC ZC engine, the ease of swapping a B16A into place almost always proved the sane thing to do. Nevertheless, we salute the ZC swap for pioneering Honda engine swaps for the masses. In hindsight, it was little more than a glimpse of what was to come.
